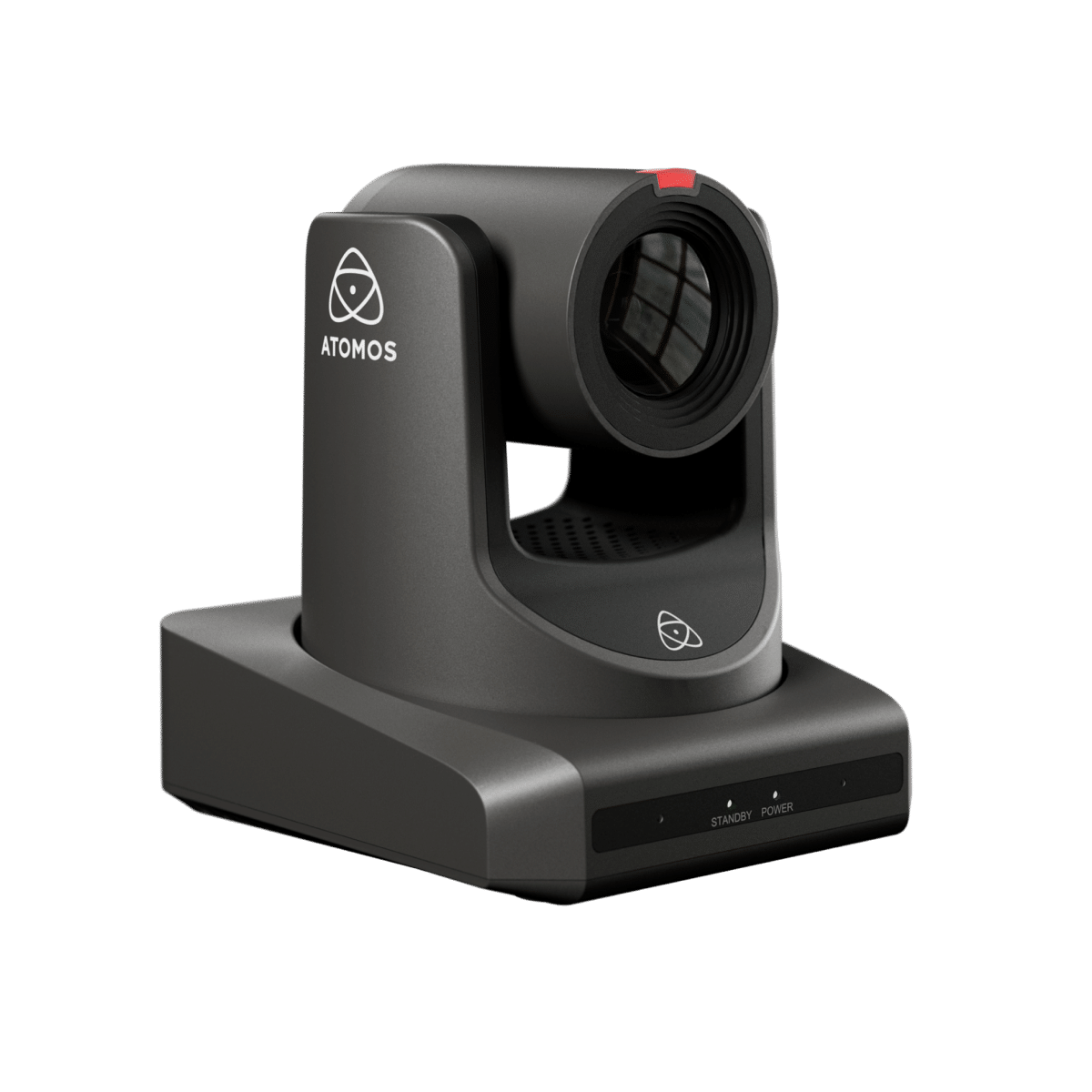

A-Eye HD-20X – PTZ Camera
AI-powered, auto-tracking HD PTZ camera
€1,199.00incl. VAT
In stock
Key Features
- 1/2.8-inch HD CMOS sensor
- 20x optical zoom
- 2.07M effective pixels
- AI-powered tracking
- ±170° pan and -30° to +90° tilt range
- For education, houses of worship, and budget-friendly production
Pre-order now - ships end June 2025
Product Details
A-Eye is a powerful new range of AI-enhanced PTZ cameras that combine intelligent tracking, high-quality video, and seamless connectivity. Designed for educators, content creators, business professionals, worship leaders, and live event teams, the A-Eye series makes multi-camera production simple, scalable, and professional—no camera operator required.
With real-time AI-powered tracking and advanced PTZ motion (±170° pan and -30° to +90° tilt range), A-Eye cameras follow your subject with fluid, precise movement—perfectly framing every step, whether you’re streaming a live concert, teaching a class, or presenting to a global audience.
Physical
Dimensions (W x H x D mm)
139.2mm x 176.5mm x 165.8mm
Weight
About 1.5Kg
Environmental
Ambient operating temperature
Up to 40 degrees Celsius
Construction
Body
ABS
Power
Input voltage
DC 12V/PoE+ (802.3at)
Operating power
Max 15W
Power on indicator
Yes
Video
Sensor
1/2.8 inch, CMOS
Effective pixels
2.07M
Lens
20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
Scanning mode
Progressive
Resolutions supported
1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
Color system / compression
YUY2/MJPEG/H.264
Video format
YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps
Digital zoom
16x
Minimum Illumination
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
Image flip
Supported
Image freeze
Supported
White balance
Auto, VAR, Manual, One Push, Indoor, Outdoor
Backlight compensation
Support
Digital noise reduction
2D & 3D Digital Noise Reduction
SNR
≥55dB
Mechanical
Horizontal FOV
60.7° ~ 3.36°
Vertical FOV
34.1° ~ 1.89°
Pan angle
±170°
Tilt angle
-30° ~ +90°
Pan speed
1.7° ~ 100°/s
Tilt speed
1.7° ~ 69.9°/s
Preset position
255
Preset accuracy
0.1°
USB
Operating system
Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS
USB audio
Supported
USB video protocol
UVC 1.1/UVC 1.5
USB PTZ control
Supported
Network
Video compression
H.264/H.265
Video stream
First Stream, Second Stream
First stream resolution
1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
Second stream resolution
1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180
Video bit rate
32Kbps ~ 20480Kbps
Bit rate control
CBR, VBR
Frame rate
1fps ~ 60fps
Audio compression
AAC
Audio bit rate
96Kbps, 128Kbps, 256Kbps
Protocols
NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Audio
Microphone
Built-in dual microphone, 100Hz to 16KHz frequency response
Audio input
Line In
Audio output
Line Out, HDMI, USB
Input/Output Interfaces
Line In
3.5mm audio interface
Line Out
3.5mm audio interface
RS-485
2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 IN
8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P
RS-232 OUT
8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only
Network
10M/100M Adaptive Ethernet Port
USB
USB 2.0: Type A
SDI
3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard
HDMI
HDMI version 1.3
Power jack
JEITA type (DC IN 12V)
Tally indicator
Yes
Box Contents
A-Eye HD-20X PTZ camera, RS-232 serial cable (2m), USB 3.0 A-A cable (1.5m), lens cover, remote controller, accessory tray, wall mount rack, screw pack, power adaptor with 4 plugs, Quick Start Guide
Warranty
Standard
1 year. Extended to 2 years on product registration.
